In clinical practice, measuring the range of clear focus in presbyopic patients is of foremost importance. This measurement is relevant for understanding the necessary optical correction to optimise each patient’s near vision.

The correct diagnosis of presbyopia and assessment of visual function in those with presbyopia involves the application of both subjective and objective procedures. Objective techniques, such as autorefraction, corneal topography, and lens imaging, are more reliable than subjective techniques, like patient-reported outcome questionnaires and defocus curves.

SUBJECTIVE ASSESSMENTS

Almost all individuals over 40–45 years old become presbyopic, with symptoms often noticed before seeking professional care. People generally adapt by using larger fonts, more lighting, and longer working distances before resorting to corrective measures.1 Patient-reported outcome measures (PROMs) are a good way to evaluate how presbyopia affects an individual’s quality of life and to systematically quantify symptomatology, shifting the focus to patient-driven care.2 PROMS also help evaluate treatment effectiveness and compare interventions. Common examples include:

• Near activity visual questionnaire (NAVQ),

• Presbyopia impact and coping questionnaire (PICQ),

• Near vision presbyopia task-based questionnaire (NVPTQ),

• National Eye Institute refractive error quality of life instrument (NEI-RQL),

• The refractive status and vision profile (RSVP),

• Quality of life impact of refractive correction (QIRC),

• Contact lens impact on quality of life (CLIQ),

• Quality of vision (QoV ),

• Near vision-related quality of life (NVQL),

• Freedom from glasses value scale (FGVS), and

• Patient-reported spectacle independence questionnaire (PRSIQ).

PSYCHOPHYSICAL TECHNIQUES

Acuity Assessments

Static acuity, where both the target and observer are stationary, is the most common method used in practice. The preference is to measure LogMAR at various distances: far, intermediate, and near, for those with presbyopia or associated risk factors.

Defocus curves, which evaluate visual acuity across different levels of dioptric defocus, offer a detailed understanding of visual performance at multiple distances and are particularly valuable for comparing presbyopia correction methods. Typically, measurements are made in increments of 0.50D, covering a defocus range from +2.00D to -5.00D.3-5For finer detail in visual acuity for distant viewing vergences, some experts advise using 0.25D intervals within +0.50D and -0.50D.6 Although the process is time consuming, defocus curves provide more detailed information than single-point measurements, and analysis methods like the area under the curve often correlate more strongly with functional outcomes than direct step-by-step comparisons.3,7

Dynamic visual acuity is the ability to perceive details of moving objects, whether the object, observer, or both are in motion. It evaluates the eye capacity for proactive information retrieval, simulating tasks like driving and flying in the actual environment. The observer’s acuity decreases as the target speed increases. This ability decreases with age, and it is also affected by contrast, target size, and colour.8,9

Modifications to the measurement parameters used in visual acuity assessments may have a major effect on results:

Optotype presentation (targets) affect visual acuity. Isolated single-line examinations frequently produce higher scores because of less crowding,10 which may lead to overestimating acuity. Different target types, like letters or symbols, are chosen based on recognition ability. To avoid memorisation, randomisation or varied charts are recommended.

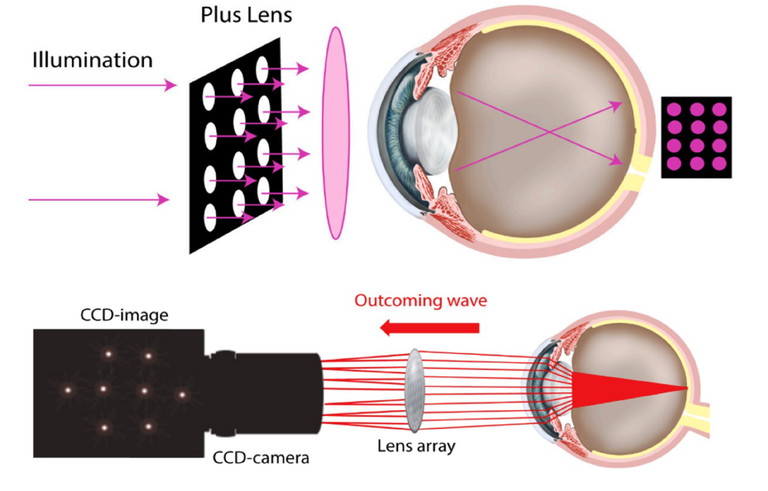

Figure 1. The Hartmann-Shack aberrometry principle uses a lenslet array to evaluate the visual disturbances of the wavefront exiting the eye from a laser point source input.

Light levels significantly impact visual acuity, with low illumination worsening acuity, especially in the presence of refractive errors.11,12

Time of the day may impact visual acuity, decreasing later during the day because of physiological and environmental factors. An illuminance meter is suggested to ensure consistency in lighting during the day.

Reading performance is influenced by the level of presbyopia, font size, type of text, duration of reading, as well as word and line spacing.13-17

Contrast sensitivity impacts visual quality and decreases with age, especially in low-light environments. It is crucial to evaluate how well pseudo-accommodative optical devices work to correct presbyopia, as they reduce contract sensitivity by increasing spherical aberrations, which can jeopardise the optical system modulation transfer function.18 Contrast sensitivity is measured with a Pelli-Robson chart. Mobile apps provide faster testing, but it is uncertain if they are reliable for elderly patients. Computerised techniques offer higher accuracy.

Amplitude of accommodation (AoA) is important to determine whether a near addition is required. Methods to determine the AoA include: push-up or push-down method, minus lens method, retinoscope, and calculating the near addition from AoA (dioptric working distance – ½ AoA).

Eye dominance is crucial in presbyopia correction, especially with multifocal lenses and monovision. Typically, the dominant eye is corrected for distance, but there is debate over whether sensory or sighting dominance is more relevant for success. Despite common practices, no clear scientific consensus exists, and the subjective nature of dominance assessment adds complexity.

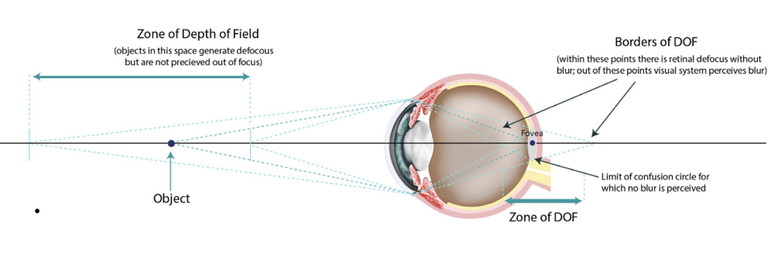

Figure 2. Depth of field (DoF).

OBJECTIVE TECHNIQUES

Keratometry and corneal topography equipment can be used in practice to accurately measure corneal optical power in normal eyes19 but may lack accuracy following eye surgery, due to corneal curvature alterations.20

Corneal topography is essential because it precisely determines the power of the intraocular lens (IOL) to be used following cataract surgery. It is also important in cases where the patient has previously undergone kerato-refractive surgery.21 Corneal power, anterior chamber depth, and axial length are the three most important measurements for determining the correct IOL to implant.

Reflection techniques include keratometry and Placido disc corneal topographers.

Optical section techniques include tomography using slit-scanning technology, such as Scheimpflug imaging and optical coherence tomography (OCT).

Slit scanning devices, like the Orbscan 3, combine slit-scanning technology with a Placido disc system to obtain topographic measurements of both anterior and posterior corneal surfaces. An added feature is full corneal pachymetry.22-24

Scheimpflug imaging devices, are based on the principle of rotating a lens about its horizontal or vertical axis to adjust the plane of focus.

Anterior segment OCT is a non-contact optical imaging technique capable of high-resolution cross-sectional imaging of biological tissue using infrared light.25 There are three types of OCTs available: Time-domain OCT, spectral-domain OCT, and swept-source OCT autorefraction/aberrometry.

Autorefraction is an objective measurement of the power of the eye. If possible, an openfield autorefractor is preferable when trying to assess the accommodative element.26 Aberrometry is an advanced form of autorefraction that examines light refraction from many sites on the eye. The HartmannShack is the most common one. It uses a lenslet array to evaluate visual disturbances of the wavefront existing in the eye (Figure 1).

Depth of Field

Depth of field (DoF) is the perceptual tolerance of the human eye to retinal defocus. DoF can improve presbyopia symptoms as it can partially compensate for accommodation (pseudo-accommodation). An objective definition of DoF is “the focussing range for which no accommodation is detected”27 (Figure 2).

It is important to measure the DoF when conducting a presbyopia examination as it can influence the needs of the presbyope and thus influence the correction required.28 DoF can be measured both subjectively (e.g., by detecting target blur) and objectively (e.g., by analysing retinal image quality). Factors influencing DoF include: pupil size, age, luminance, and neural adaptation. Measuring DoF is vital for optimising presbyopia correction strategies, especially with multifocal lenses and surgical interventions.

Pupil Size

In presbyopes, pupil size, position, and dynamics can assist in deciding which correction strategy to use, especially when selecting from multifocal optical designs for contact lenses, IOLs, corneal inlays, and corneal refractive surgery. Pupil size controls the amount of light entering the eye. The DoF decreases by approximately 0.12D per millimeter increase in pupil diameter over a range of 2.5 mm to 8.0 mm.29 Pupil size is influenced by illumination level and decreases with age. Measuring pupil size can be challenging, but recently developed infrared pupillometry instruments offer reliable results. Proper alignment of optical devices with the pupil is vital, especially in multifocal contact lenses and IOLs, as misalignment can adversely impact visual quality.

Neural Factors

Neuroadaptation may help counteract visual issues like contrast sensitivity loss caused by spherical aberrations in multifocal lenses, IOLs, and corneal inlays.30 This adaptation, possibly a blur-adaptive phenomenon, can influence image focus perception and alleviate presbyopia symptoms by interacting with correction strategies like increased DoF. Studies using neuroimaging and electrophysiology suggest that various brain regions, from the retina to the visual cortex, are involved,31-34 but a complete understanding of these mechanisms is still lacking.

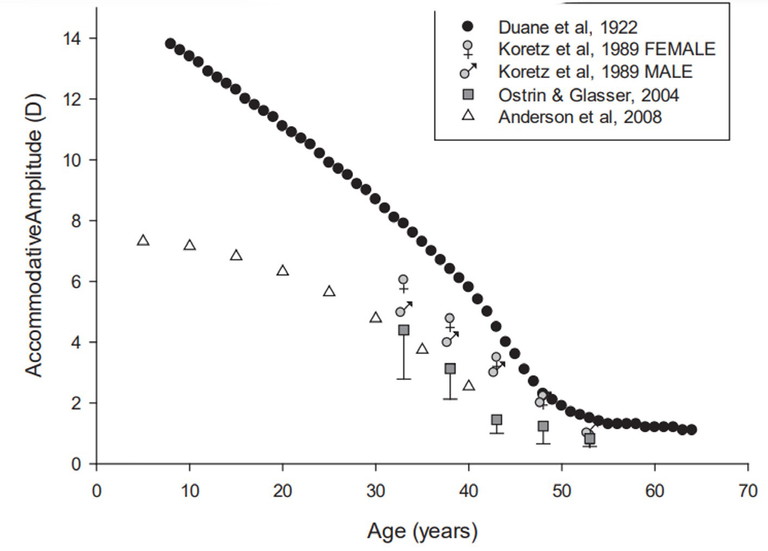

Figure 3. Maximum accommodation amplitudes for subjects pooled from four studies.41-44

Lens Shape and Position

The shape and positioning of the crystalline lens are crucial for determining lens power during accommodation, though this assessment involves assumptions about the lens refractive index, which varies with age.35 Various imaging methods, including Scheimpflug imaging, ultrasound biomicroscopy, OCT, and magnetic resonance imaging (MRI), are employed to evaluate lens shape and position. Each technique has distinct benefits in terms of precision and application. Scheimpflug imaging generates 3D images of the anterior eye, though distortions can occur due to the tilt of the camera and refractive surfaces. Ultrasound biomicroscopy uses high-frequency sound waves to provide detailed images of the lens and surrounding structures, even in the presence of opaque tissues. OCT delivers high-resolution images by analysing light reflections, frequently used to examine the crystalline lens during accommodation and to pinpoint the location of implanted IOLs. MRI leverages nuclear magnetic resonance to create detailed 3D images of the eye, which is particularly valuable for observing changes in the ciliary muscle during accommodation. Although each technique has strengths and limitations, together they offer a comprehensive understanding of lens mechanics and positioning, which is essential for enhancing accommodative function in both natural and artificial lenses.

DIAGNOSIS

Presbyopia is diagnosed when the eye’s ability to accommodate is insufficient to meet an individual’s near vision requirements. For further understanding, refer to the BCLA CLEAR Presbyopia: Definitions Report.36 The amplitude of accommodation is high until the age of 20; it declines dramatically by the age of 30, and stabilises by the age of 50 at the level of one dioptre (Figure 3).

The scatter of data points illustrates that exact accommodation loss cannot be predicted based only on biological age.

As the presbyope becomes aware of the gradual loss of near vision, they try to compensate for, or adapt to, this new experience. The early presbyope begins to hold the near objects further away to see them clearly. This may be more difficult in low-light conditions. There might be feelings of eye fatigue or headaches. As the presbyopia progresses, the compensations (such as font size and brighter light) increase. In the cases of advanced presbyopia, to be able to recognise objects or print close, a reading aid is required.

When examining presbyopic myopes, the eye care practitioner (ECP) must know whether the patient wears contact lenses. If this is the case, then reading spectacles or multifocal contact lenses will be required as the patient cannot remove their contact lenses to read like they do when wearing spectacles. Myopic contact lens wearers experience symptoms earlier than spectacle wearers. In the case of hyperopes, the opposite occurs.37 Myopic patients wearing spectacles can remove their spectacles to be able to see objects clearly at a near viewing distance. They adjust their near clear point in relation to the equivalent addition relative to their distance prescription. For example, if their distance prescription is -3.00D, when they remove their spectacle effectively, they have a +3.00D near add; thus, their working distance is 33 cm. The working distance places a high demand on accommodation and vergence, causing symptoms of headaches, blurred vision, and eye strain.38 When examining patients, practitioners must consider the closer distances adopted while viewing material on smartphones, and prescribe refractive corrections for near use. The same applies when treating patients suffering from asthenopia associated with near work.39

It has been shown that when looking at a smartphone, the instrument is held much closer than when viewing written text.39,40

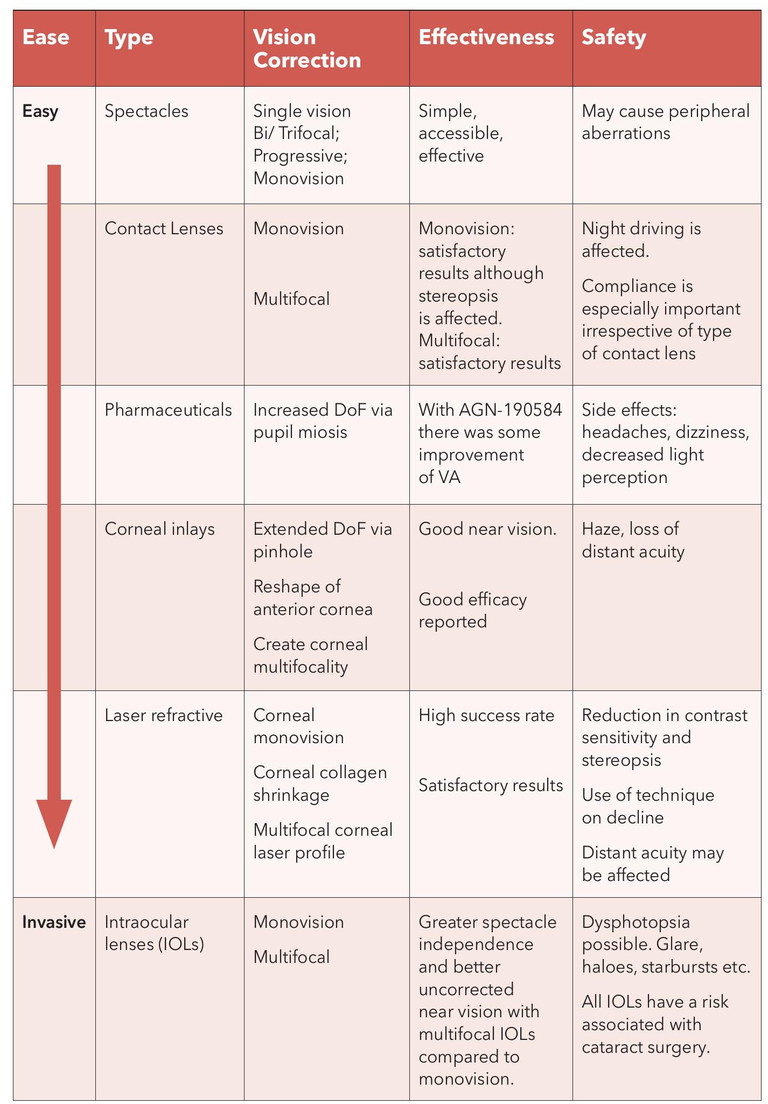

Table 1. Key considerations when comparing the effectiveness and safety of current presbyopia correction strategies.48-51

PATIENT COMMUNICATION AND AWARENESS

Early discussions about presbyopia, ideally around age 40, are recommended to prepare patients for the condition. Customising the prescription based on the patient’s specific requirements will help improve their overall visual function and quality of life.

A prospective study conducted in Japan revealed that awareness of presbyopia significantly increases with age, with 50% of individuals aged 45–49 being aware of the condition, 87.5% awareness in those aged 50–54, and full awareness among those aged 55–59.45 In contrast, none of the participants under 44 were aware of presbyopia.

Another study, however, reported that 38% of participants recalled having difficulty focussing before the age of 40.46 The Japanese study also found that as binocular near visual acuity decreased to 0.0 logMAR (20/20), awareness of presbyopia and difficulties with near tasks increased significantly, with over 80% of patients having trouble reading comfortably.45 This indicates that maintaining a near visual acuity better than 0.0 logMAR may be crucial for comfortable near vision and could serve as a useful threshold for diagnosing presbyopia. A United Kingdom based survey of 135 patients aged 40 years and over, revealed that 70% were aware of presbyopia, but only 15% were aware of the correct definition of presbyopia.47

It’s important to educate people about presbyopia early, particularly before symptoms begin, and to emphasise the need for regular eye exams to ensure comfortable near vision as they age.

In many countries, many presbyopes are under corrected due to the lack of correct diagnosis and management of the condition. The protocol for diagnosing and managing presbyopia focusses on a comprehensive approach to ensure accurate correction and patient satisfaction. The key steps are as follows:

1. Comprehensive history: Gather detailed information about the patient’s current eyewear (glasses/contact lenses), near vision tasks, any symptoms like eye strain or headaches, and any coping strategies they use. Consider using presbyopia-specific patientreported outcome measures if appropriate.

2. Update visual prescription: Assess and update the patient’s prescription for distance, intermediate, and near vision.

3. Evaluate visual parameters: Measure pupil size, residual accommodation, and binocular vision to identify any visual anomalies that might be contributing to the patient’s symptoms.

4. Determine required near vision addition: Fine-tune the reading addition based on the patient’s preferred working distance and other factors such as age, gender, ethnicity, and near visual acuity. Assess eye dominance while considering multifocal lenses or monovision.

5. Confirm visual range: Verify that the prescribed addition allows the patient to perform their tasks comfortably across the required range of distances. Discuss the benefits of appropriate lighting or the use of additional reading glasses. If no addition is needed, educate the patient on potential presbyopic changes and advise them to seek help if their visual demands change.

6. Demonstrate and explain correction: Show the patient how presbyopia correction affects their vision, particularly for distant tasks, and explain when the correction should be used.

7. Effective communication: Discuss the adaptation process to the new correction, potential future adjustments, and alternative correction options such as contact lenses. Emphasise the importance of understanding presbyopia and tailoring treatment strategies to the patient’s individual visual needs and preferences.

EVALUATING MANAGEMENT STRATEGIES

There are numerous strategies available to correct presbyopia. The key issues to be addressed are the relative safety, efficacy, and the patient suitability of the intervention used. The ECP must understand the presbyope’s lifestyle, their visual requirements, and their expectations before deciding which intervention to recommend.

Many management approaches are available or being developed, such as contact lenses, corneal techniques, scleral techniques, pharmaceuticals, and IOLs. For further information, refer to BCLA CLEAR Presbyopia: Management Reports.48-51

The most important considerations when deciding which intervention to choose are the overall efficacy and safety of the intervention, (Table 1). The individual can determine value for money and make an informed decision based on considerations such as access, convenience, effectivity, and cost of each option available.

There is a lack of published information to help the ECP advise the presbyope on the best option to select. Usually, the first choices are multifocal spectacles and even multifocal contact lenses. Both choices enable reversibility and flexibility.

When considering the safety issue, it is important to explain the gaze location when wearing multifocal spectacles. If the wearer does not look through the correct portion of the spectacle lens, they may fall due to unclear vision. For contact lens wearers, educating on strategies to minimise risk of complications and to promote compliant wear should be a priority.

Some people are concerned about their cosmetic appearance when wearing spectacles, while others feel that spectacles are a fashion accessory and prefer to wear them. However, it seems that presbyopic females prefer multifocal contact lenses over spectacles, especially if they previously wore single vision contact lenses.53

Factors that can influence a patient’s choice include:

• Accessibility,

• Affordability,

• Presbyope’s expectations,

• Cosmetic factors, and

• Flexibility between interventions.

BCLA CLEAR Presbyopia was facilitated by the BCLA, with financial support by way of educational grants for collaboration, publication, and dissemination provided by Alcon, Bausch and Lomb, CooperVision, EssilorLuxottica, and Johnson and Johnson Vision.

The editors for this article series are Neil Retallic and Dr Debarun Dutta.

To earn your CPD hours from this article visit mieducation.com/bcla-clear-presbyopia-diagnosisand-evaluation.

References available at mieducation.com.
