OXYGEN PERMEABILITY

Contact lens materials have evolved over time, from polymethyl methacrylate (PMMA) to 2-hydroxyethyl methacrylate (HEMA), and to silicone hydrogel (SiHy) – all in the search for improved oxygen permeability. Silicone combines with oxygen in siloxane, allowing oxygen to pass through the polymer. The main issue with including silicone or fluorine in contact lens materials is that this causes hydrogel lenses to be more hydrophobic, affecting deposition onto the lens surface. Lysozyme and albumin tend to adsorb to these newer materials less than they do to HEMA; however cholesterol deposits more onto silicone hydrogel lenses.2,3

WETTABILITY

Wettability refers to the potential of a liquid to spread and maintain contact with a surface, thus wettability in this context refers to how much of the lens surface is covered by the tear film. The addition of other substances, either on the lens surface or in the associated liquid, will affect the wettability of the lens. Surfactants (surface active agents) lower the surface tension of a liquid, thereby increasing its ability to spread and penetrate. Factors affecting the wettability of a contact lens material include the chemical properties of the contact lens constituents, how it is manufactured, what surface coatings are added, and the inclusion of any wetting agents. The initial wettability of a reusable lens may change when exposed to lens care solutions and tear film components. Figure 1 shows a Reme-Hart contact angle goniometer, which is used to measure contact lens surface wettability.

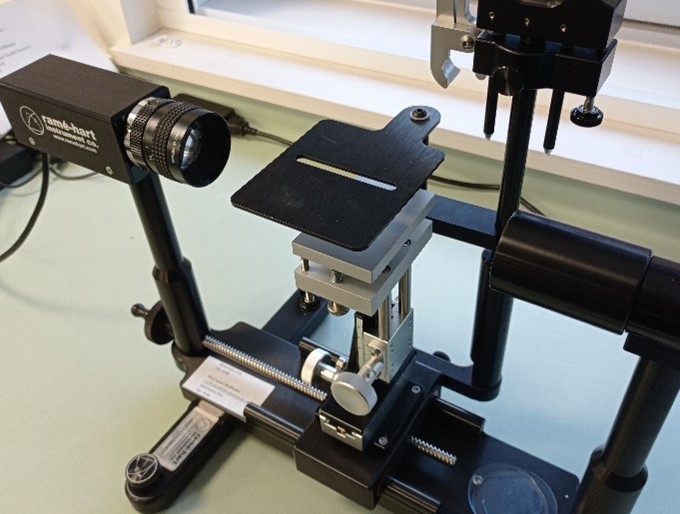

Figure 1. The Reme-Hart contact angle goniometer, used to measure contact lens surface wettability with a sessile drop or captive bubble technique.

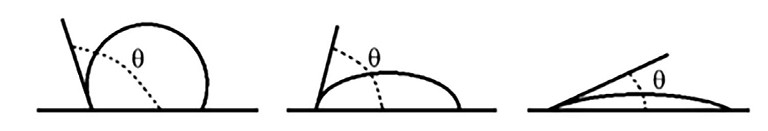

Figure 2. A diagram showing the contact angle (θ) of a liquid on surfaces: higher contact angles correspond to lower wettability and vice versa.

Figure 3. A representative photograph of the dynamic water captive bubble contact angle measurement technique. Contact angle assessment during (A) advancing and (B) receeding type contact angle (θ). © Dr Debarun Dutta, Optometry School Aston University.

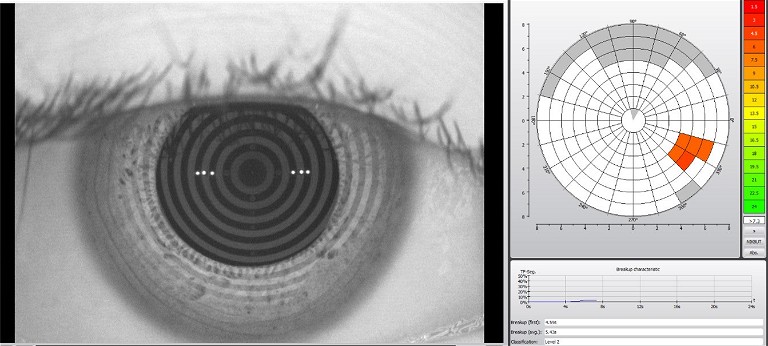

Figure 4. Assessment of non-invasive tear break up time (NIBUT) using Oculus Keratograph 5M. © Dr Debarun Dutta, Optometry School Aston University. In this instance the average NIBUT is 5.4 seconds.

Wettability can be assessed in several ways in the laboratory using lenses which are unworn (in vitro) or worn (ex vivo). One common way is to measure the contact angle of a droplet of liquid on a lens surface (Figure 2).4

This can be done using sessile drop goniometry, where a droplet of liquid is placed on a solid surface, and the contact angle is measured by means of a digital camera and a goniometer. Alternatively, the captive bubble method (Figure 3) requires the lens to be immersed in liquid, and the shape of an air bubble injected beneath it is evaluated. It should be remembered that the solution in many blister packs for contact lenses contains agents to improve wettability. These agents are lost, along with the solution, as wettability is usually measured using saline or water.

Assessment of the wettability of a contact lens on eye (in vivo) considers the ocular environment, including temperature, osmolarity, and tear composition. All of these factors can impact on the wettability of the lens surface. This can be indirectly evaluated by assessing the pre-lens tear film (PLTF) with slit lamp biomicroscopy, using specular reflection at high magnification, interferometry observation techniques, and grading scales. Alternatively, the optical quality of the lens can be assessed as this is directly affected by the wettability of the lens surface. The most common method of assessing contact lens wettability is noninvasive break-up time (NIBUT; Figure 4). NIBUT has the advantages of being available to practitioners in the clinic, covers a large amount of the lens surface, and is largely unaffected by eye movements. However, this method is not very reproducible, and measurements may vary between instruments.

Tears are repelled from a hydrophobic surface but retained on a hydrophilic surface. The relatively hydrophobic surface of silicone hydrogel lenses5 can be surface treated or copolymerised with other components. However, during wear, siloxane components can migrate to the surface, reducing wettability gained by these techniques. Wetting agents may alternatively be embedded into the contact lens material or gradually released from the lens during wear to improve the wearing experience.6

The relationship between lens wetting and comfort during contact lens wear is an important one to consider.

Contact lens wettability during wear can be maintained in several ways. Much has been written on various approaches to the subject, including changing the packaging solution in the blister pack, reviewing blink rate, and offering exercises to improve it. The use of rewetting drops and the composition of such drops and contact lens care solutions has also been extensively written about.

Table 1.

However, neither rewetting drops nor lens care solutions have been shown to have a significant impact on lens wettability during wear, suggesting that the overriding factors may be the very fact of the lens being on eye, along with the individual’s tear film composition. In the absence of more data on this subject, eye care practitioners should continue to evaluate each patient’s situation independently regarding factors such as contact lens material, wetting drops, and lens care solutions.

MAINTAINING CLEAN SURFACES

The use of daily disposable contact lenses has increased dramatically in recent years, but reusable lenses still account for at least half of contact lenses used globally. About 70–90% of reusable lens wearers care for their lenses with multipurpose disinfecting solutions (MPDS), while the remainder predominantly use peroxide-based systems.

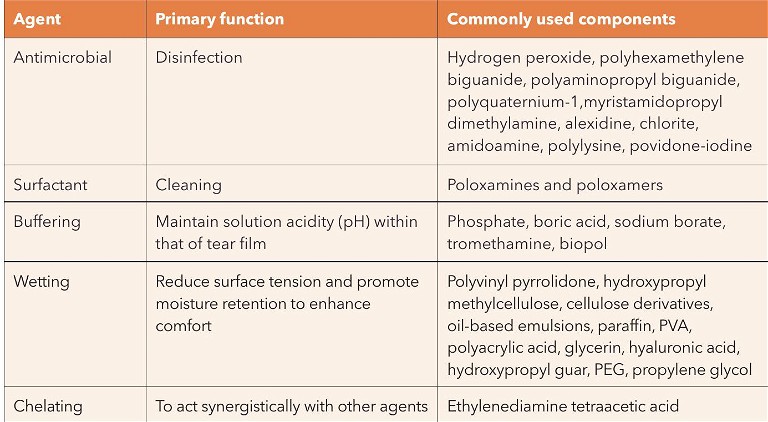

Balancing all the characteristics required of a lens care system is challenging, particularly when we require effective disinfecting without causing damage to ocular structures. Table 1 presents a list of chemical agents typically used in contact lens solutions, along with their functions.

Most multipurpose solutions available on the market have passed the ISO 14729 stand-alone test, requiring the MPDS to reduce the numbers of standard bacterial strains and standard fungi strains by 3.0 log10 and 1.0 log10 respectively, within the recommended disinfection time (four to six hours depending on the solution). While these solutions are easy to use and have the advantage of continuous disinfecting activity due to the presence of a preservative, there can be a potential for corneal staining and such solutions may be less effective against microorganisms such as Acanthamoeba. Hydrogen peroxide solutions have the advantages of being potent and preservativefree once neutralised but are relatively inefficient for long-term storage and highly toxic before neutralisation.

A surfactant in a contact lens solution acts as a cleaner or detergent, removing deposits, microorganisms, and any other debris from the lens surface in a similar manner to handwashing with soap. A surfactant is both a surface cleaner and wetting agent, and therefore key to contact lens comfort.8,9 Manufacturers make use of different surfactants in multipurpose contact lens solutions, in differing quantities and combinations. Studies have shown differing levels of efficacy in removing various deposits from different lens types, which may be of assistance in helping eye care practitioners to more effectively ‘match up’ lenses and solutions for their patients.

The purpose of a chelating agent is to act synergistically with other components in the care solution. They react with metal ions to form stable, water-soluble metal complexes, improve the efficacy of the disinfection components, and help to remove tear film deposits, most commonly proteins.

Selecting the most appropriate lens care system for a contact lens patient may well help to reduce the likelihood of lens wear drop-out. There are several factors to consider, including lens type, modality, cost, and individual preference of both practitioner and patient. A solution might impact on ocular surface cells causing discomfort, but it may also reduce lens friction caused by denatured protein, thereby improving comfort. However, studies have shown that the lens care system alone is not a significant factor in contact lens-related discomfort.10

Protecting the Tear Film

The TFOS Contact lens interactions with the tear film report concluded that the concentration of protein, lysozyme and lactoferrin in the tear film is probably unaffected by contact lenses and recommended further research on the effect of contact lens wear on other tear film components. Similarly, although the ability of lipids to deposit on contact lenses is well known, there is a lack of useful clinical analyses of this during lens wear.

Tear film mucins are produced by goblet cells in the conjunctival epithelium, and both the density of these cells and their mucin secretion is reduced by contact lens wear, although this does not seem to impact on contact lens comfort.11

The introduction of silicone hydrogel lenses brought greater oxygen permeability to contact lenses, but also more deposition of tear film components. Manufacturers made modifications to lens surfaces to reduce this, and while the lenses appear to have better wettability and compatibility as a result, a link to improved comfort remains unclear.

Tear film supplements and drops were developed to assist in overcoming contact lens discomfort.

In summary, many studies have examined the effect that contact lens wear has on the tear film and have found only a few associations between contact lens discomfort and tear film biochemistry. Patients exhibiting symptoms of discomfort may have differing concentrations of various tear film components, but it is uncertain whether these changes are causing the symptoms or merely coincidental.

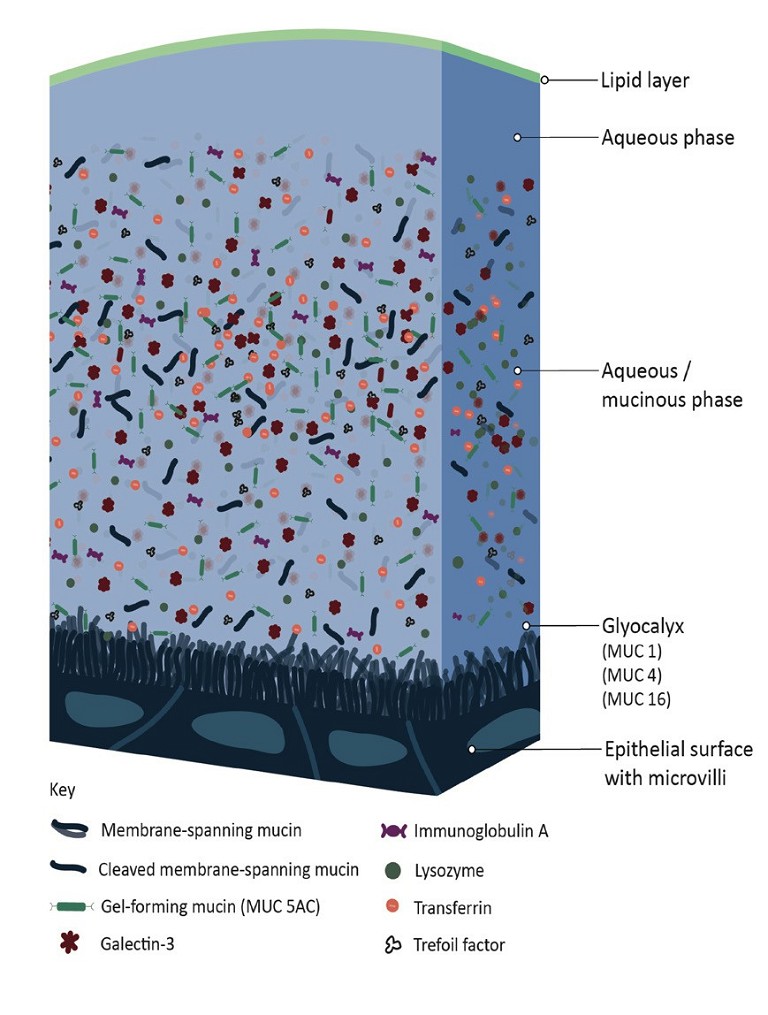

Figure 5. The tear film and its layers.

Figure 6. Deposits and poor wettability on a silicone hydrogel reusable lens. © Dr Keyur Patel.

Figure 7. Deposits on a rigid corneal lens. © Dr Keyur Patel.

The comparison between various studies is made more challenging due to the use of different schemes classifying symptomatic and non-symptomatic lens wearers, different wear modalities, and lens care systems and materials. Additionally, different biochemical techniques have been used in the studies, which also hampers accurate comparison.

Reduced deposition of proteins has been brought about with lens coatings of HA and PEG, but rigorous clinical trials on this have yet to take place, and microbial binding to lenses has been reduced by antimicrobial coatings.

SUMMARY

Surely tear film is very important when considering the biocompatibility of lenses during wear. Further research is needed, however, as the exact role of the tear film and its possible alteration to improve biocompatibility and comfort is still unclear.

To earn your CPD hours from this article visit mieducation.com/contact-lens-wettability-hygieneand-interactions-with-tears.
The full report and supplementary information can be accessed at doi.org/10.1016/j. clae.2021.02.004.
The Podcast of BCLA CLEAR – Contact lens wettability, disinfection and interactions with tears can be found by scanning the QR code or by visiting podcasts. apple.com/br/podcast/ bcla-clear-episode-8-contactlens-wettability-cleaning/ id1524673927?i=1000555210174.

Original paper: Willcox, M., Keir, N., Maseedupally, V., Masoudi, S., McDermott, A., Mobeen, R., Purslow, C., Santodomingo-Rubido, J., Tavazzi, S., Zeri, F., Jones, L., CLEAR -Contact lens wettability, cleaning, disinfection and interactions with tears. Contact Lens Anterior Eye. 2021 Apr;44(2):157–191.
Acknowledgement and recognition to Mark Willcox, Nancy Keir, Vinod Maseedupally, Simin Masoudi, Alison McDermott, Rabia Mobeen, Christine Purslow, Jacinto Santodomingo-Rubido, Silvia Tavazzi, Fabrizio Zeri, and Lyndon Jones who were the paper’s authors, and the educational grants from Alcon and CooperVision.

The author would like to thank Professor Mark Willcox for reviewing of this article.

The editors for this series are Neil Retallic and Dr Debarun Dutta.
